Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications

Model Number : HEB

Brand Name : Bussmann

Place of Origin : Guangdong, China

MOQ : 100

Rated Current : 30A

Rated Voltage : 600V

Fuse Size : 10x38mm (13/32" x 1-1/2")

Material : Copper, Stainless Steel, Plastic

Breaking Capacity : Low

Withstand Current : 200 kA RMS Sym

Operating Temperature : -40°F (-40°C) to 221°F (105°C)

Connection Type : Lineside: Copper Crimp #8-16; (2) #12-16

Pole Count : 1 Pole

Fuse Type : Non-Indicating, Non-Breakaway Midget

Insulation Boots : Optional (not included)

Submersibility : IP67 (with optional boots)

Fuse Sizing : Minimum 200% of RMS load current

Terminal Options : Array available

Conductor Size : Limited by conductor size

Contact Now

Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications
Product Description
Product
Bussmann Fuse Holder Carrier Block In-Line 600V AC/DC 1-30 A 1 Pole Crimp Non-Indicating Non-Breakaway Midget
Rated
30A 600V
Fit for
10x38mm (13/32” x 1-1/2”)
Material
Copper,Stainless Steel,Plastic
Approval
UL,CSA,CE,ROHS
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications


DESCRIPTION of Bussmann Fuse Holder Carrier Block In-Line 600V AC/DC 1-30 A 1 Pole Crimp Non-Indicating Non-Breakaway Midget
The Bussmann series of HEB submersible,single-pole in-line fuse holders for UL 13/32”x 1-1/2” supplemental fuses. Available in non- breakaway and breakaway versions with an array of terminal options to meet application needs.





Breakaway versions come with insulating boots to provide submersibility per UL IP67. Non breakaway versions require ordering
optional insulating boots for submersibility.
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications






RATINGS of Bussmann Fuse Holder Carrier Block In-Line 600V AC/DC 1-30 A 1 Pole Crimp Non-Indicating Non-Breakaway Midget
Volts:600 V Amps: up to 30 A limited by conductor size Withstand: 200 kA RMS Sym.

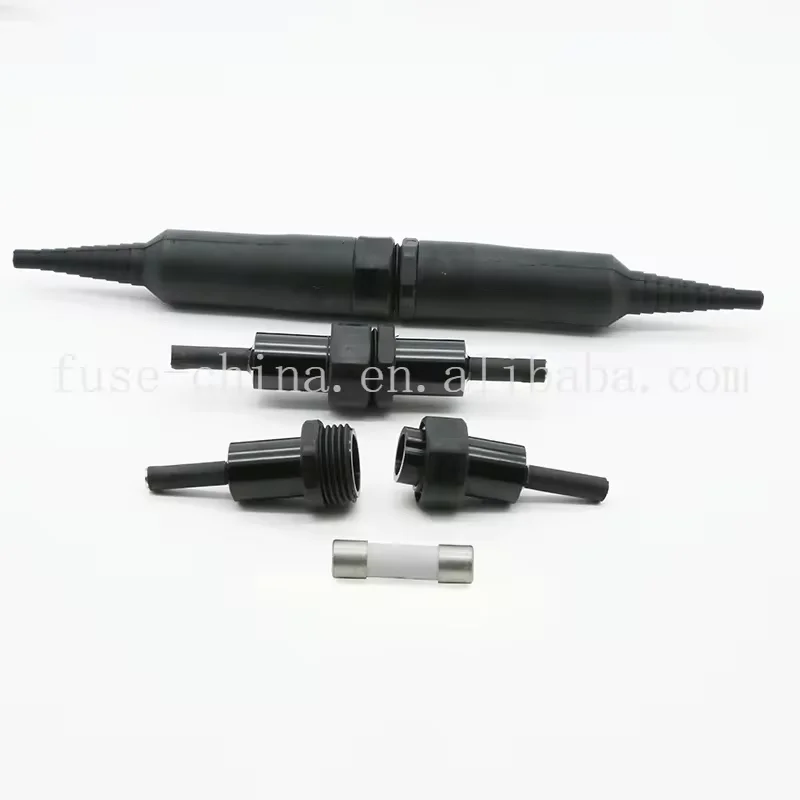

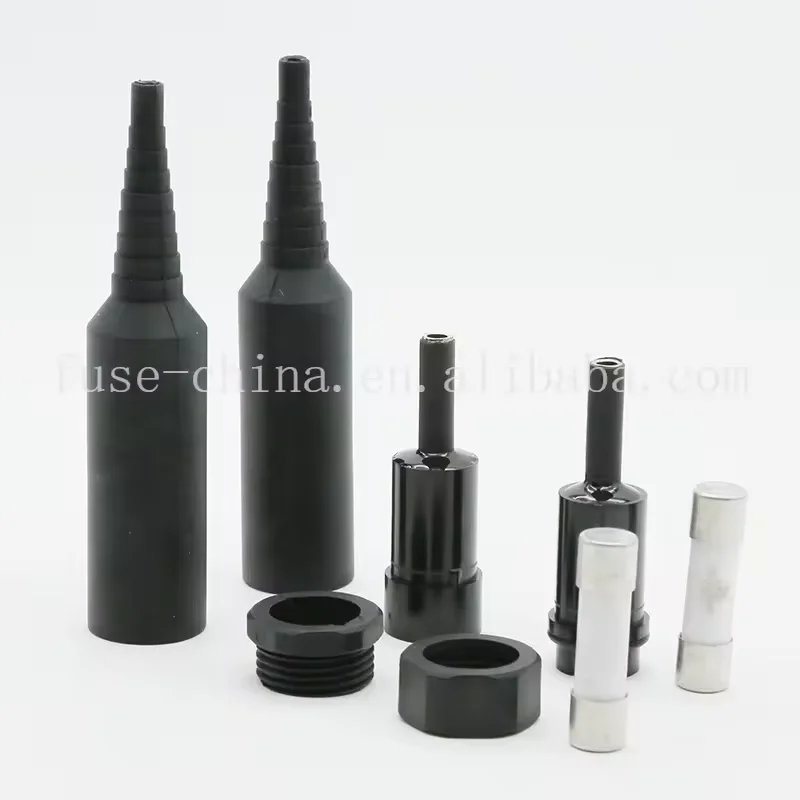

INSULATION BOOTS of Bussmann Fuse Holder Carrier Block In-Line 600V AC/DC 1-30 A 1 Pole Crimp Non-Indicating Non-Breakaway Midget
Two insulating boots come standard with the breakaway holder configurations. Insulating boots are not included as standard with non-breakaway holders. Two insulating boots must be ordered separately, if required, for each non-breakaway holder ordered.
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications






When insulating boots are utilized,extra heat retention requires that fuses are sized at a minimum of 200% of the RMS load current.

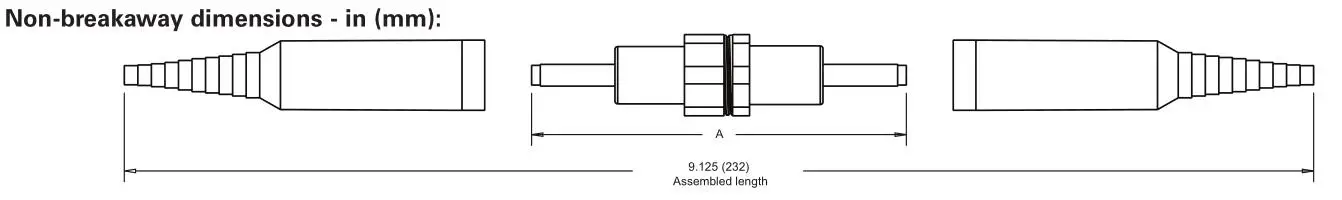

Product Size(mm)
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications
Related Products
Packing&Shipping
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications
Company Introduction
Dongguan Tianrui Electronics Co., LTD was founded in July 2010, focusing on the manufacture and solution supply of comprehensive circuit protection components.including over-current protection series, over-temperature protection series,over-voltage protection series and Bussmann Fuse Holder Carrier Block In-Line 600V AC/DC 1-30 A 1 Pole Crimp Non-Indicating Non-Breakaway Midget. The company covers an area of 4,000 square meters.more than 85 employees, research and development personnel nearly 10 people,the monthly production capacity of 80 million.Our company uses raw materials from overseas and Taiwan, has dozens of advanced automatic circuit protection components production and testing equipment, adopt perfect quality assurance system, to ensure the safety and stability of every product we produce.
Bussmann 600V AC/DC 30A Rated Current 1 Pole Crimp Fuse Holder Carrier Block for Industrial Applications
FAQ
1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?
A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to
us.You don't have to worry about the carriage charge we will pay for that.

2Q:Are we a trader or manufacturer?
A:Both

3Q:Why do you have choose us?
A:High quality. Competive price. Fast shipping.

4Q:What is approval?
A:ROHS of Bussmann Fuse Holder Carrier Block In-Line 600V AC/DC 1-30 A 1 Pole Crimp Non-Indicating Non-Breakaway Midget
